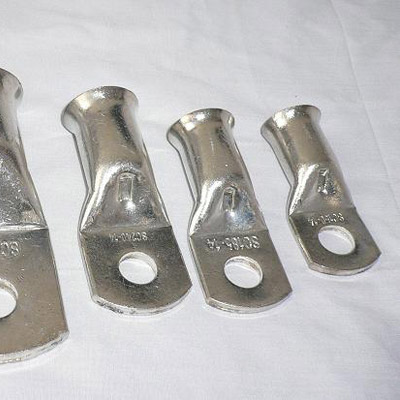

適用于標稱截面1.5-1000mm⒉電(dian)力電(dian)纜式(shi)電(dian)線(xian)的(de)(de)(de)銅導(dao)體與(yu)電(dian)氣設備的(de)(de)(de)連接。 銅接線(xian)端(duan)子特點：采用管料(liao)含銅量>99.9％的(de)(de)(de)高純(chun)T2銅管制造(zao)，長(chang)期工作溫度-50℃-150℃，表面鍍(du)錫。

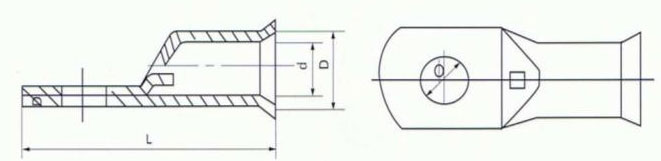

參數表
| 電纜接頭 | 規格 |
? |
D(mm) |
d |
L |
|
SC(JGB) |
4MM |
?5.2,?6.2 |
5.0 |
3.4 |
21.0 |
|
6MM |
?5.2,?6.2,?8.2 |
5.5 |
3.9 |
26.5 |
|
|
10MM |
?6.2,?8.2 |
6.0 |
4.4 |
29.0 |
|
|
16MM |
?6.2,?8.2,?10.5 |
7.5 |
5.9 |
30.5 |
|
|
25MM |
?6.2,?8.2,?10.5 |
9.0 |
7.0 |
36.0 |
|
|
35MM |
?6.2,?8.2,?10.5,?12.5 |
10.8 |
8.6 |
40.0 |
|
|
50MM |
?8.2,?10.5,?12.5 |
12.5 |
10.1 |
48.0 |
|
|
70MM |
?8.2,?10.5,?12.5 |
14.5 |
11.9 |
54.0 |
|
|
95MM |
?10.5,?12.5 |
16.5 |
13.5 |
60.0 |
|
|
120MM |
?10.5,?16.5 |
19.0 |
16.0 |
66.0 |
|
|
150MM |
?12.5,?16.5 |
21.0 |
17.0 |
73.0 |
|
|
185MM |
?16.5 |
23.0 |
18.6 |
83.0 |
|
|
240MM |
?16.5 |
26.0 |
21.4 |
92.0 |
|
|
300MM |
?16.5,?20.5 |
30.0 |
24.4 |
104.0 |
|
|
400MM |
?16.5,?20.5 |
34.0 |
28.0 |
115.0 |
|
|
500MM |
?16.5,?20.5 |
38.0 |
32.0 |
125.0 |
